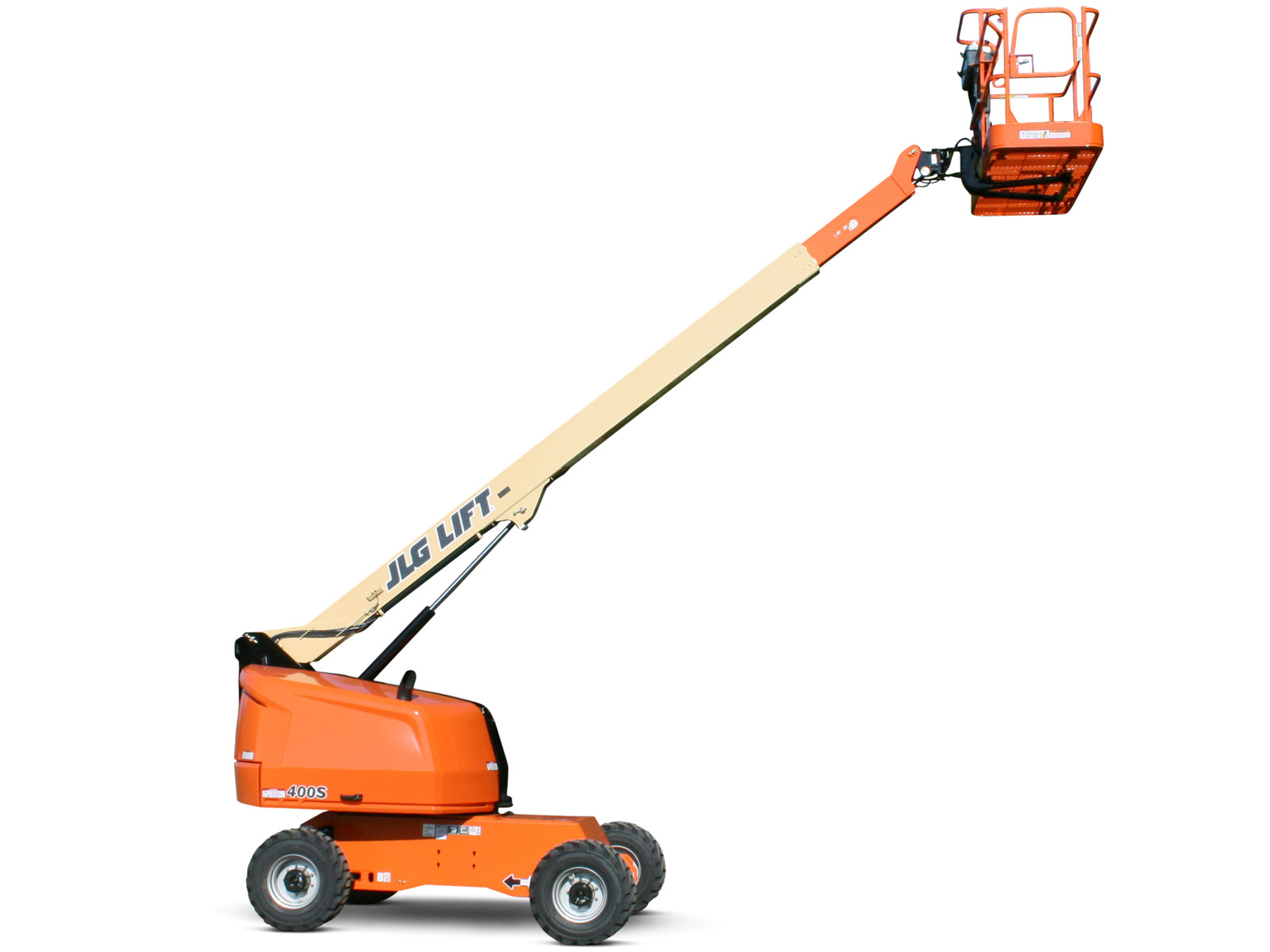

40′ Telescoping Boom Lift
Power Source
Power Source
| Auxiliary Power | 12 Volts DC |
| Capacity – Fuel Tank | 22 gal. / 83.28 L |
| Engine Type – Diesel | Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW |
| Engine Type – Dual Fuel | GM Vortec 3000 MPFI 82 hp 61 kW |
Performance
Performance
| Drive Speed – 4WD | 4.5 mph / 7.24 km/h |
| Gradeability – 4WD | 45% |
| Platform Capacity – Restricted | 1000 lb / 453.59 kg |
| Platform Capacity – Unrestricted | 600 lb / 272.16 kg |
| Swing | 360 Degrees |
| Swing Type | Continuous |
| Turning Radius – Outside | 15 ft 11 in. / 4.84 m |
Dimensional Data
Dimensional Data
| Ground Clearance | 1 ft / 0.31 m |
| Machine Height | 8 ft 1 in. / 2.47 m |
| Machine Length | 24 ft 10 in. / 7.57 m |
| Transport Length | 24 ft 10 in. / 7.57 m |
| Machine Width | 7 ft 7 in. / 2.31 m |
| Platform Dimension A | 3 ft / 0.91 m |
| Platform Dimension B | 8 ft / 2.44 m |
| Tailswing | 2 ft 10 in. / 0.86 m |
| Tire Size | 12 x 16.5 Pneumatic Lug Tread Tires |
Reach Specifications
Reach Specifications
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 33 ft 3 in. / 10.13 m |
| Platform Height | 40 ft / 12.19 m |
