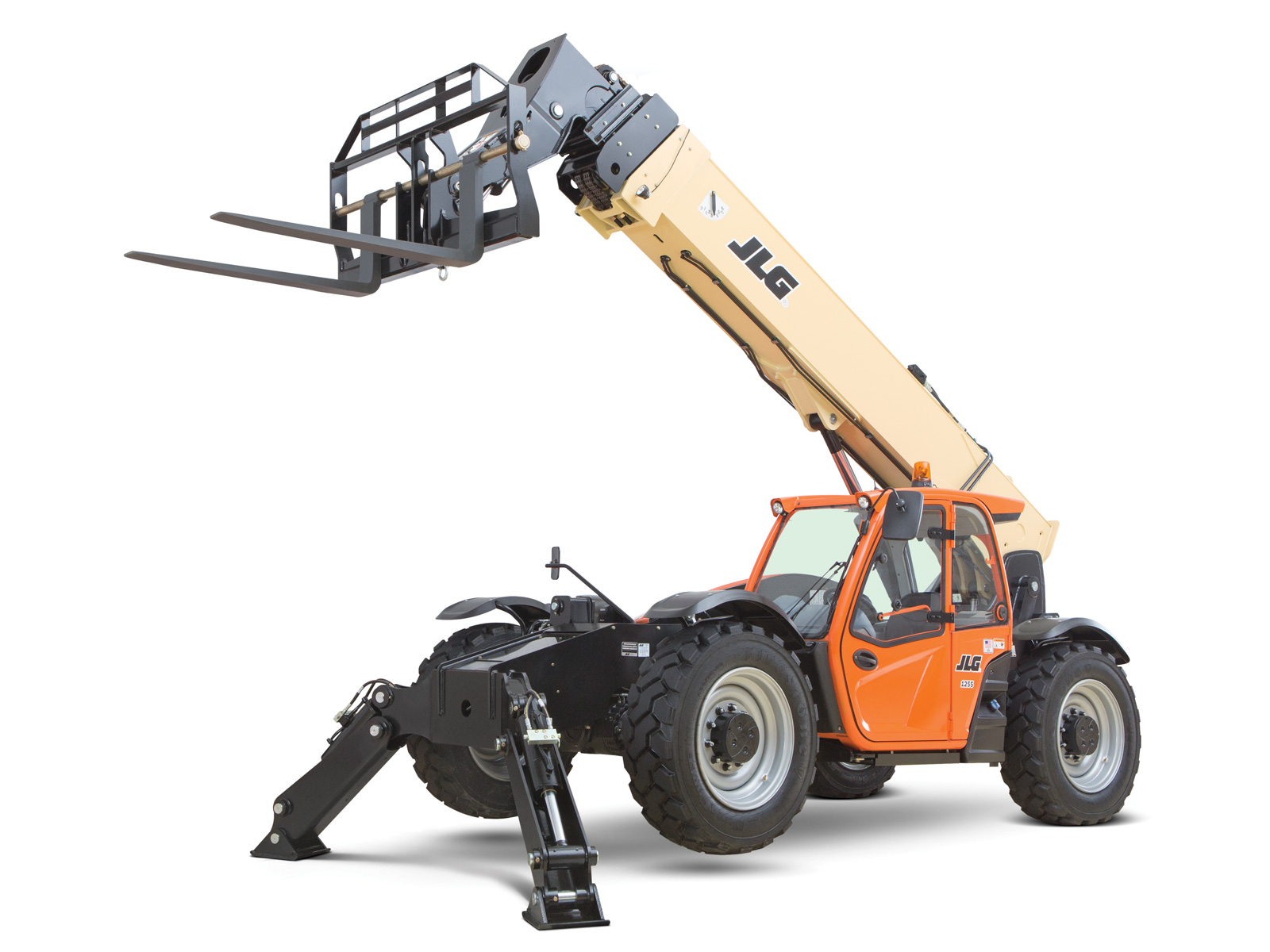

12k Telehandler
Performance
Performance
| Drawbar Pull | 25400 lb / 11521.25 kg |
| Frame Leveling | 10 Degrees |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 12000 lb / 5443.11 kg |
| Outriggers Up Max Lift Height | 55 ft / 16.76 m |
| Outriggers Up Max Forward Reach | 42 ft / 12.8 m |
| Lift Capacity at Full Height | 5000 lb / 2267.96 kg |
| Lift Capacity at Max Reach | 3500 lb / 1587.57 kg |
| Maximum Reach | 42 ft / 12.8 m |
| Maximum Lift Height | 55 ft / 16.76 m |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 14 ft / 4.27 m |
| Speed – Maximum Lift | 16 sec. |
| Speed – Maximum Lower | 13 sec. |
| Speed – Maximum Telescope In | 15 sec. |
| Speed – Maximum Telescope Out | 18 sec.
B18
|
| Speed – Maximum Travel | 20 mph / 32.19 km/h |
Dimensional Data
Dimensional Data
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 20 ft 1 in. / 6.12 m |
| Machine Width | 8 ft 5 in. / 2.56 m |
| Tire Size | 400/75-28 |
| Wheelbase | 11 ft 6 in. / 3.49 m |
Power Source
Power Source
| Capacity – Fuel Tank | 38.3 gal. / 144.98 L |
| Engine Horsepower | 130 hp / 96.98 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSF3.8L Tier 4 Final
B36
|
| Maximum Engine RPM | 1500 rpm |
General
General
| Axle-Front | High Bias, Limited Slip |
| Axle-Rear | Planetary |
| Function Pump Type | Load Sensing Dual Gear |
| Operating Vehicle Weight | 33960 lb / 15404 kg |
| Transmission – Nr Forward Gears Standard | 4 |
| Transmission – Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
